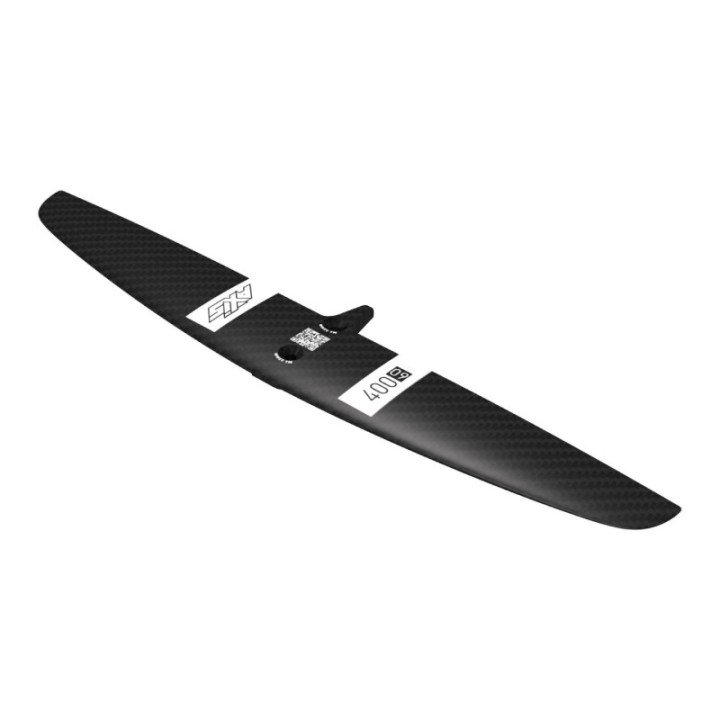

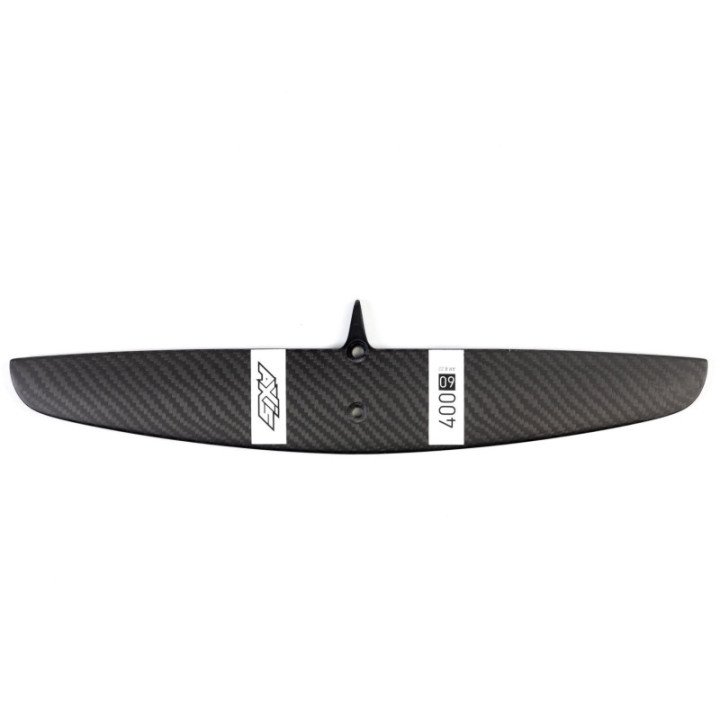

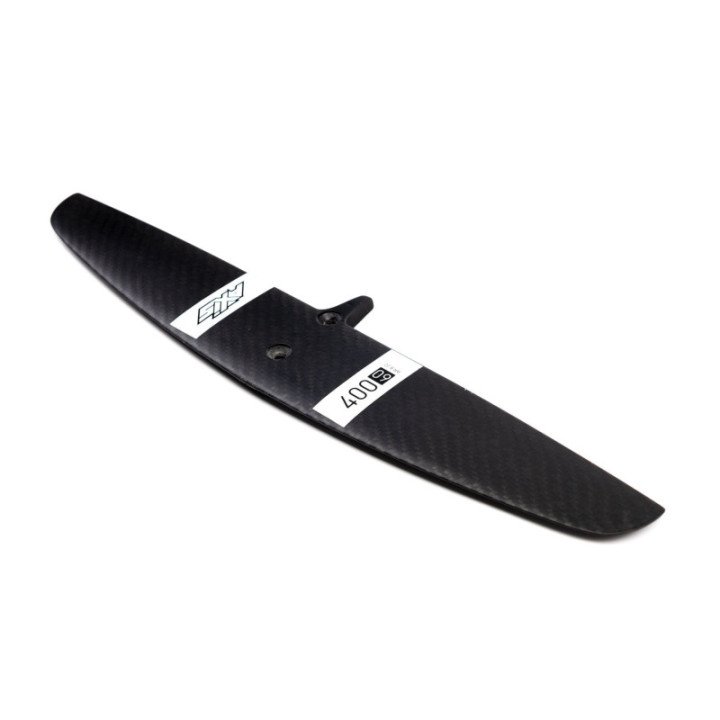

Flat Speed Carbon Rear Wing

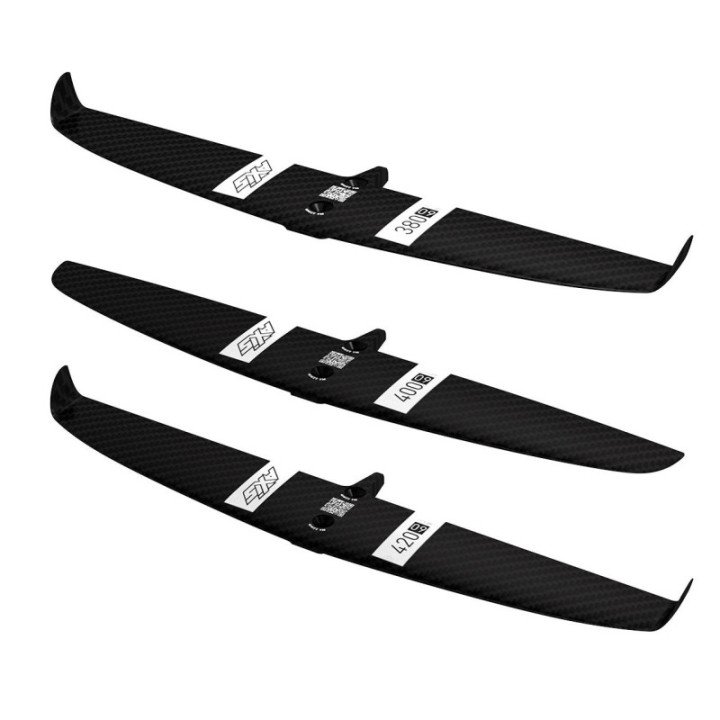

Check out our new Progressive rear wing line up The AXIS Foils 400 HA Flat Carbon Rear Wing is one of our fastest rear wing, and the perfect companion to any of our performance front wings. At 8.22 Aspect Ratio, 60mm chord and flatter foil section, the 400 HA Flat Carbon Rear Wing is FAST, loose, and ideal for all high performance foiling. From prone, to winging, to SUP, to Downwind to Kite, to Pump. A great high performance rear wing for multiple uses. When you purchase the AXIS 400mm HA Flat carbon rear wing we include an AXIS padded cover with zipper, in heather gray, and AXIS branding, for safer setup, transportation and storage. WINGSPAN: 400 mm / 15.75 in CHORD: 60 mm / 2.36 in ASPECT RATIO: 8.22 ACTUAL AREA : 196.24 cm² / 30.42 IN² PROJECTED AREA: 194.66 cm² / 30.17 IN² VOLUME: 70.77 cm³ / 4.32 IN³ Assembly What screws to mount wing to the fuselage: Rear Wing Front Screw Rear Screw 500mm x 90mm M6 x 25mm M6 x 25mm 440mm x 90mm M6 x 25mm M6 x 25mm 400mm x 90mm M6 x 25mm M6 x 25mm 460mm x 60mm M6 x 22mm M6 x 22mm 400mm x 60mm M6 x 22mm M6 x 22mm 420mm x 60mm M6 x 22mm M6 x 22mm 380mm x 60mm M6 x 22mm M6 x 22mm 390mm x 80mm M6 x 25mm M6 x 25mm 370mm x 80mm M6 x 25mm M6 x 25mm 340mm x 80mm M6 x 25mm M6 x 25mm 500mm x 90mm M6 x 25mm M6 x 25mm
