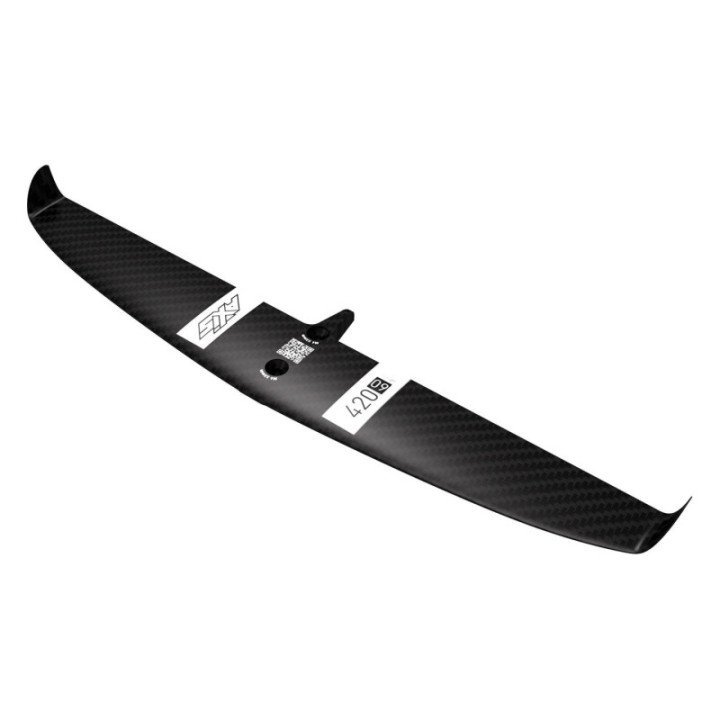

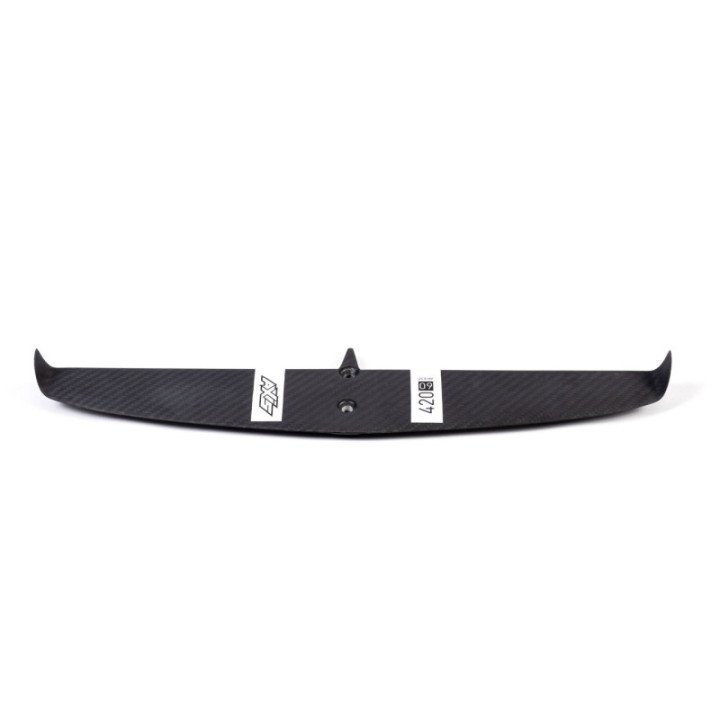

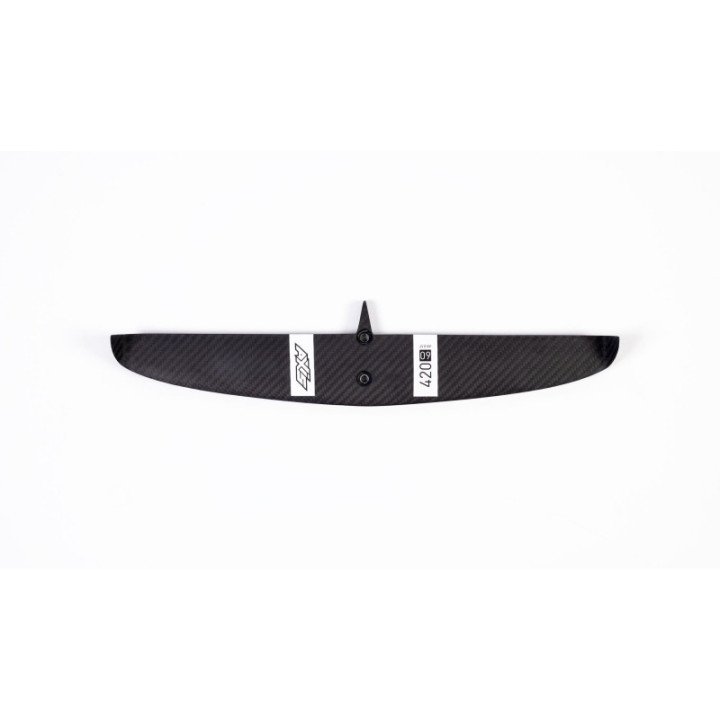

Speed Carbon Rear Wing

Imagine a shorter version of the AXIS 460 rear wing, with winglets. That's exactly what the 420 carbon rear wing is. Our fastest rear wing to date, at 420mm wingspan, 60mm chord, and 8.7 Aspect Ratio. FAST. And with the winglets it provides good turning and carving control. If you are a performance Prone, SUP, Wing or Downwind foiler, looking for the fastest setup, then the 420 is just your wing. AXIS cover is not included in this price (limited supply first come first serve basis) WINGSPAN: 420 mm / 16.54 in CHORD: 60 mm / 2.36 in ASPECT RATIO: 8.57 ACTUAL AREA : 212.63 cm² / 32.96 IN² PROJECTED AREA: 205.76 cm² / 31.89 IN² VOLUME: 76.95 cm³ / 4.70 IN³ Assembly What screws to mount wing to the fuselage: Rear Wing Front Screw Rear Screw 500mm x 90mm M6 x 25mm M6 x 25mm 440mm x 90mm M6 x 25mm M6 x 25mm 400mm x 90mm M6 x 25mm M6 x 25mm 460mm x 60mm M6 x 22mm M6 x 22mm 400mm x 60mm M6 x 22mm M6 x 22mm 420mm x 60mm M6 x 22mm M6 x 22mm 380mm x 60mm M6 x 22mm M6 x 22mm 390mm x 80mm M6 x 25mm M6 x 25mm 370mm x 80mm M6 x 25mm M6 x 25mm 340mm x 80mm M6 x 25mm M6 x 25mm 500mm x 90mm M6 x 25mm M6 x 25mm
